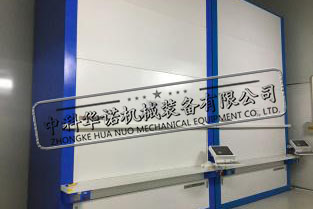

智能垂直回轉庫    Intelligent vertical gyration Library

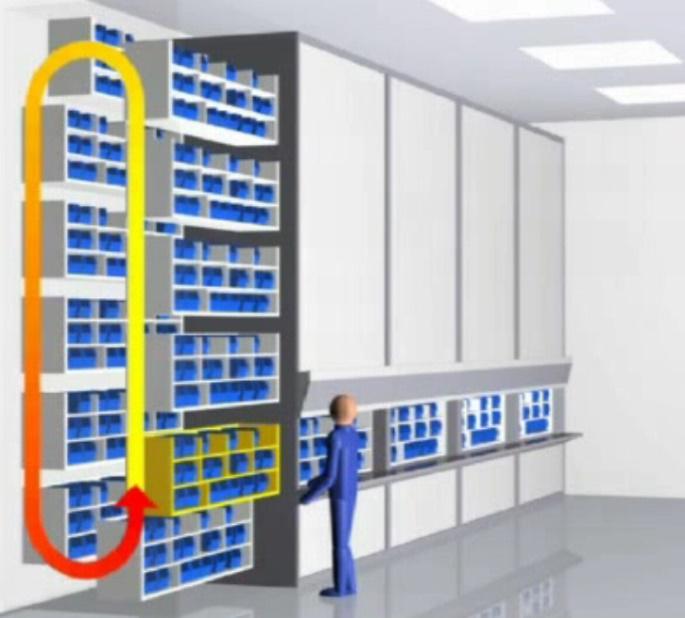

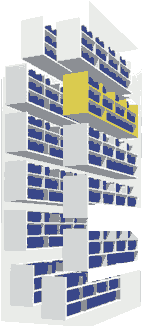

工作原理  Working principle

智能垂直回轉庫（又名垂直回轉貨柜、循環貨柜、旋轉貨柜、自動貨柜、立體貨柜）是以料斗為存儲單元，采用垂直回轉原理,料斗與鏈條相連,通過電機轉動帶動鏈條循環轉動,實現由貨到人的物流存儲方式.操作者通過查詢只需要點擊相應物品所在料斗號碼,貨物自動送到出料口。該設備采用PLC控制技術，具有智能化存取，權限設置等功能。

The Intelligent vertical gyration library is a storage unit with hopper, it adopts the vertical rotary principle, the hopper is connected with the chain, and the chain is revolving through the motor rotation to realize the logistics storage mode from the goods to the human. The operator can only click the number of the hopper of the corresponding article by the operator, and the goods are sent to the outlet automatically. . The device uses PLC control technology, with intelligent access, authorization settings and other functions.

優點：

1）智能化：由貨到人、先進先出；2）效率高：***短路徑；3）安全性：安全光幕；4）利用率：節省占地面積約60%以上；5）密閉性：全封閉、防塵避光；6）安全性：密碼鎖，電動門；7）防靜電。

Advantages：

1) Intelligentized: from goods to people, advanced first out; 2) High efficiency: the shortest path; 3) Security: safety light screen; 4) Utilization ratio: save more than 60% area; 5) Closed: all closed, dustproof and light avoidance; 6) Security: password lock, electric door;7) Antistatic.

智能垂直回轉庫    Intelligent vertical gyration Library

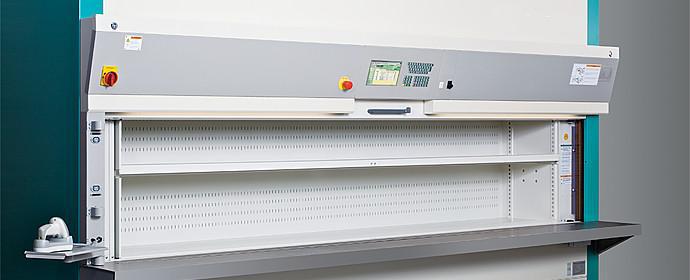

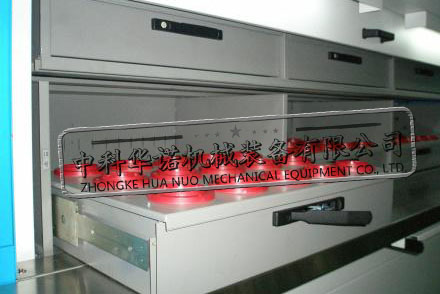

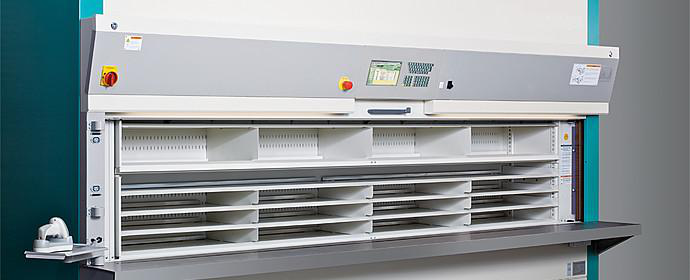

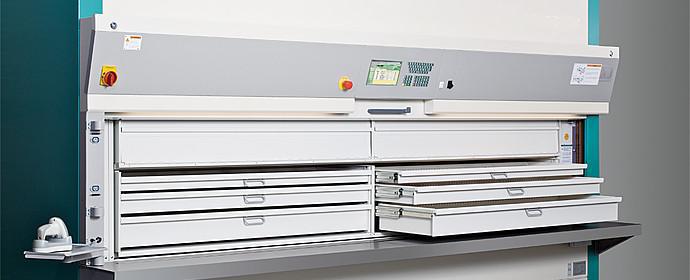

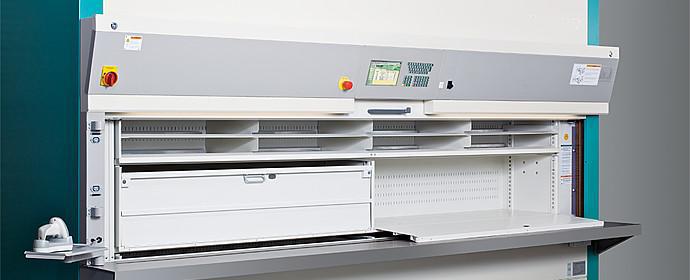

多種料斗供客戶選擇 A variety of hoppers for customers to choose

存放物品：電子元器件、刀具，醫療藥品器材、檔案、盤料、工模具、原材料、成品等。

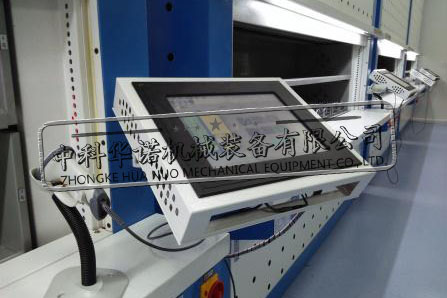

智能垂直回轉庫    Intelligent vertical gyration Library

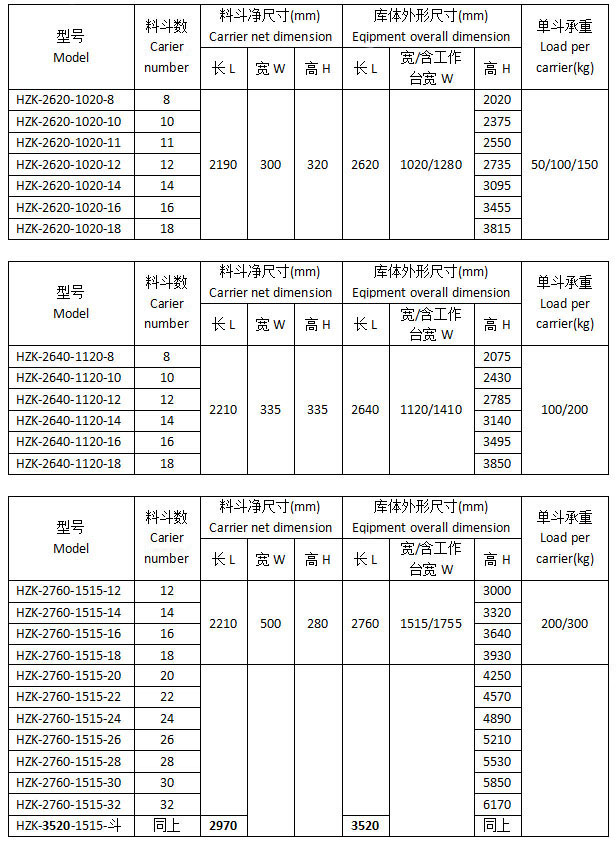

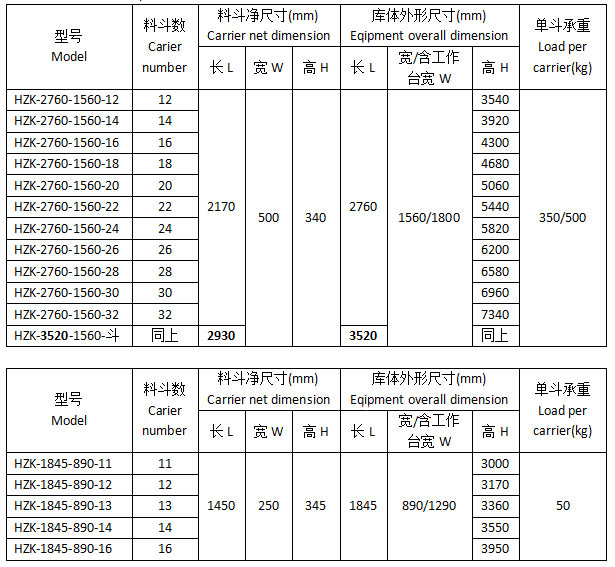

技術參數（Technical parameter）：

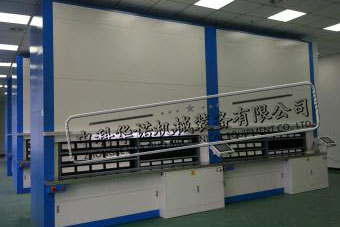

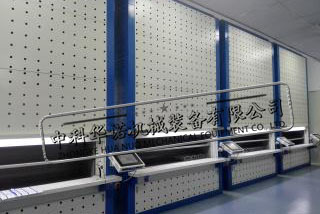

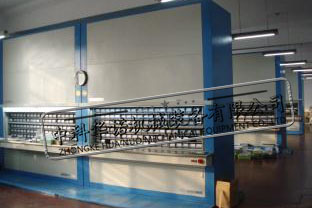

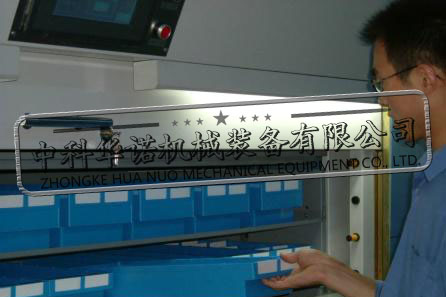

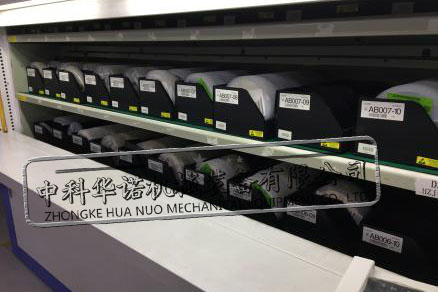

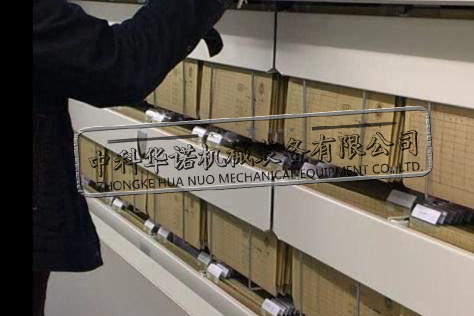

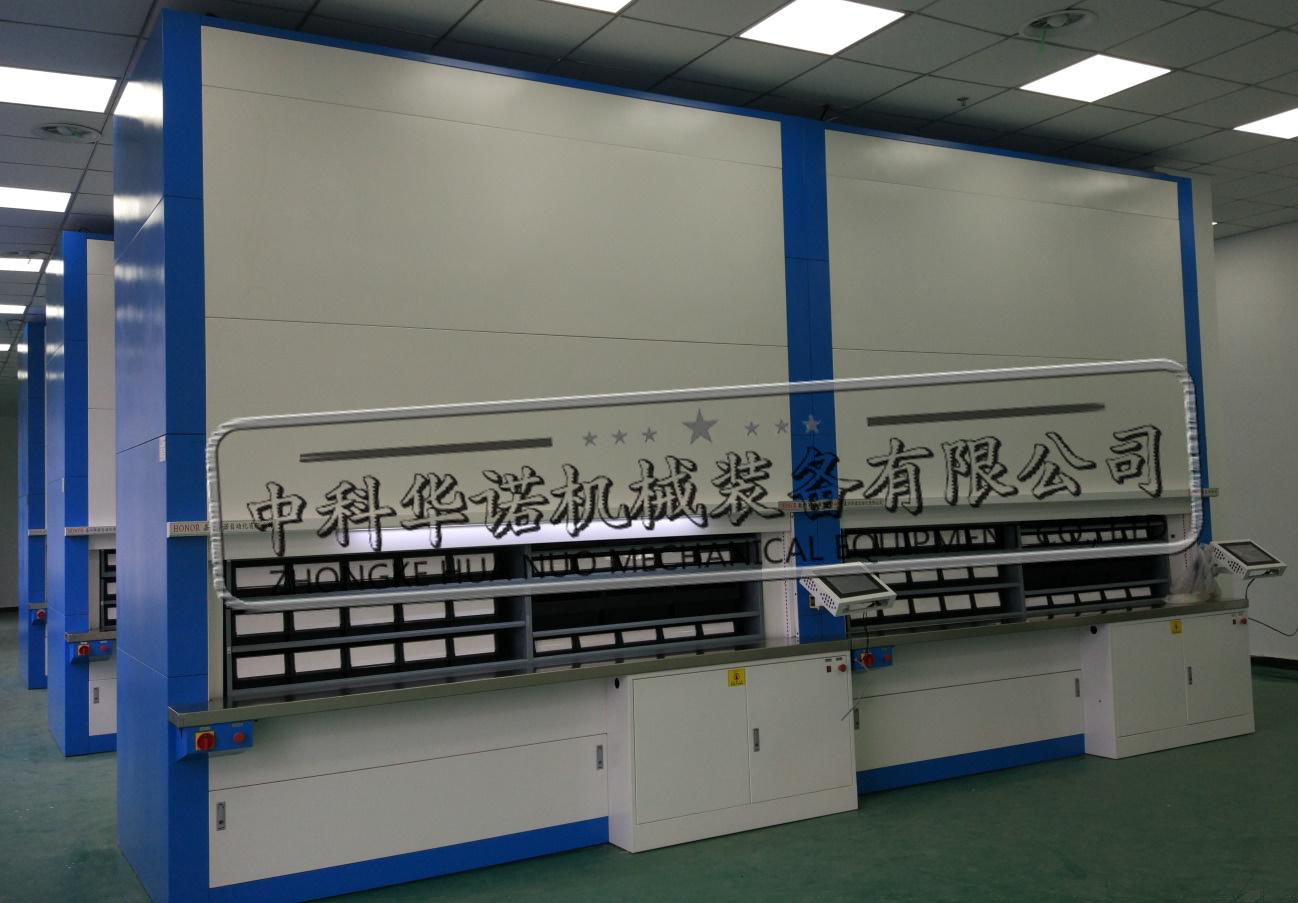

應用案例 Application case
